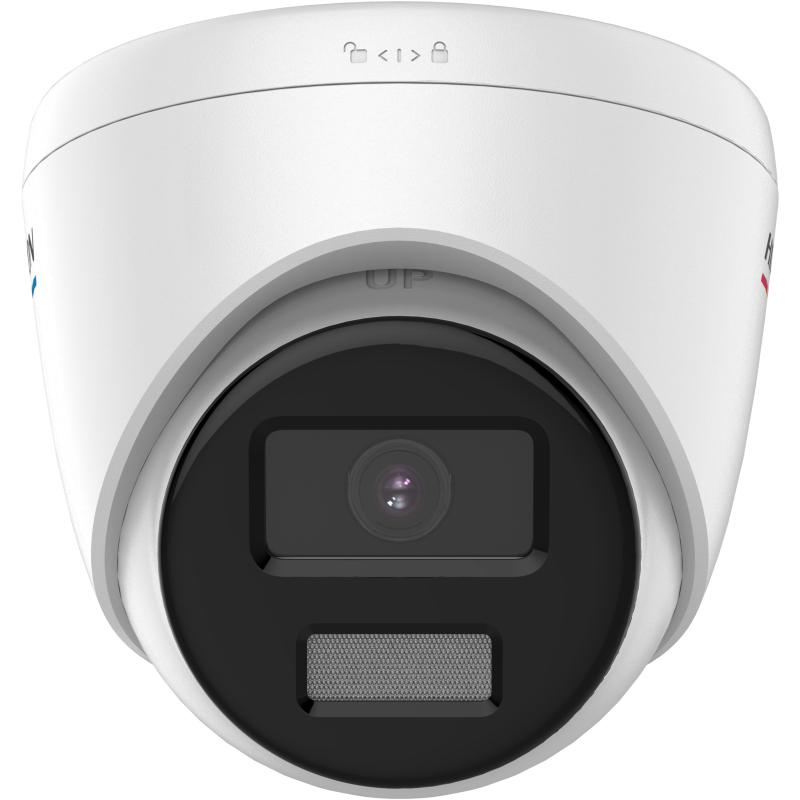

Hikvision DS-2CD1327G2H-LUF ColorVu Dome 2MP 2.8mm Lens Güvenlik Kamerası

Hıkvısıon (DS-2CD1327G2H-LIUF) 2mp 2.8mm 3D Dnr,d-Wdr,blc,hlc Colorvu Acusense Dome Ip KAM.-30MT.

2 MP ColorVu with Smart Hybrid Light Fixed Turret Network Camera

• High quality imaging with 2 MP resolution
• Support Human and Vehicle Detection
• Smart Hybrid Light: advanced technology with long range
• Efficient H.265+ compression technology
• Support on-board storage up to 512 GB (SD card slot) (Optional)
• Built-in microphone for real-time audio security
• Water and dust resistant (IP67)
• • Camera
  • Image Sensor 1/2.8" Progressive Scan CMOS
  • Max. Resolution 1920 × 1080
  • Min. Illumination Color: 0.0005 Lux @ (F1.0, AGC ON),B/W: 0 Lux with IR
  • Shutter Time 1/3 s to 1/100,000 s
  • Day & Night IR cut filter
  • Angle Adjustment Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°

  • Lens
  • Lens Type Fixed focal lens, 2.8 and 4 mm optional
  • Focal Length & FOV

    2.8 mm, horizontal FOV 106°, vertical FOV 56°, diagonal FOV 129°

    4 mm, horizontal FOV 88°, vertical FOV 47°, diagonal FOV 103°

  • Lens Mount M12
  • Iris Type Fixed
  • Aperture F1.0

  • DORI
  • DORI

    2.8 mm, D: 44 m, O: 17 m, R: 8 m, I: 4 m

    4 mm, D: 53 m, O: 21 m, R: 10 m, I: 5 m

  • Illuminator
  • Supplement Light Type IR,White Light
  • Supplement Light Range Up to 30 m
  • Smart Supplement Light Yes
  • IR Wavelength 850 nm

  • Video
  • Main Stream

    50 Hz: 25 fps (1920 × 1080, 1280 × 720)

    60 Hz: 30 fps (1920 × 1080, 1280 × 720)

  • Sub-Stream

    50 Hz: 25 fps (640 × 480, 640 × 360)

    60 Hz: 30 fps (640 × 480, 640 × 360)

  • Video Compression

    Main stream: H.265+/H.265/H.264+/H.264,

    Sub-stream: H.265/H.264/MJPEG

  • Video Bit Rate 32 Kbps to 8 Mbps
  • H.264 Type Baseline Profile,Main Profile,High Profile
  • H.265 Type Main Profile
  • Bit Rate Control CBR,VBR
  • Region of Interest (ROI) 1 fixed region for main stream

  • Audio
  • Audio Type Mono sound
  • Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC
  • Audio Bit Rate 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
  • Audio Sampling Rate 8 kHz/16 kHz
  • Environment Noise Filtering Yes

  • Network
  • Protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, UDP, QoS, FTP, SMTP, UPnP
  • Simultaneous Live View Up to 6 channels
  • API Open Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)),ISAPI,SDK
  • Security Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
  • User/Host

    Up to 32 users

    3 user levels: administrator, operator, and user

  • Client iVMS-4200,Hik-Connect
  • Web Browser

    Plug-in required live view: IE 10, IE 11,

    Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

  • Image
  • Image Settings Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
  • Day/Night Switch Day,Night,Auto,Schedule
  • Wide Dynamic Range (WDR) Digital WDR
  • SNR ≥ 52 dB
  • Image Enhancement BLC,HLC,3D DNR
  • Privacy Mask 4 programmable polygon privacy masks

  • Interface
  • Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
  • On-Board Storage -F: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
  • Built-in Microphone Yes
  • Reset Key -F: Yes

  • Event
  • Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
  • Linkage Upload to memory card (-F model supports), trigger recording (-F model supports), upload to FTP,notify surveillance center,send email,trigger capture

  • General
  • Power

    12 VDC ± 25%, 0.45 A, max. 5.4 W,Ø5.5 mm coaxial power plug,reverse polarity protection,

    PoE: IEEE 802.3af, Class 3, max. 6.5 W

  • Material Metal & Plastic
  • Dimension Ø110 mm × 93 mm (Ø4.33" × 3.66")
  • Package Dimension 150 mm × 150 mm × 141 mm (5.91" × 5.91" × 5.55")
  • Weight Approx. 380 g (0.8 lb.)
  • With Package Weight Approx. 611 g (1.3 lb.)
  • Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Language English, Ukrainian
  • General Function Heartbeat, anti-banding, mirror, password protection,password reset by email

  • Approval
  • EMC



    CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,

    RCM: AS/NZS CISPR 32: 2015,

    IC: ICES-003: Issue 7

  • Safety

    UL: UL 62368-1,

    CB: IEC 62368-1: 2014+A11,

    CE-LVD: EN 62368-1: 2014/A11: 2017,

    BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005

  • Environment

    CE-RoHS: 2011/65/EU,

    WEEE: 2012/19/EU,

    Reach: Regulation (EC) No 1907/2006

  • Protection IP67: IEC 60529-2013
