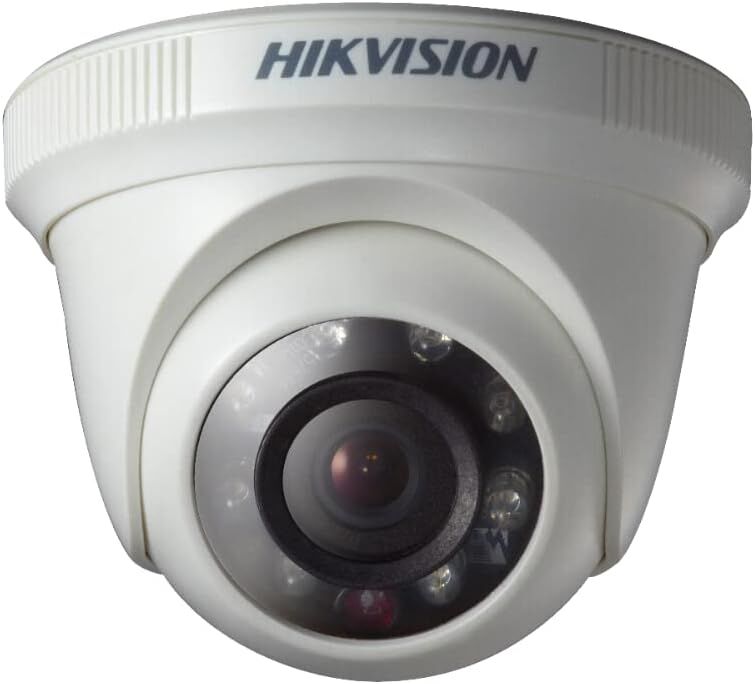

Hikvision DS-2CE56D0T-IRPF 2MP Analog HD-TVI IR Dome Kamera

* 2.0 MP çözünürlük
* TVI/AHD /CVI/CVBS Çalışabilme
* CMOS sensör *25/30 fps
*1920(H) x 1080(V) piksel
* 0.01 Lux (F1.2,AGC Açık), 0 Lux IR Ledler açık iken
*Gece Görüş mesafesi 20 Metre
*Shutter 1/25 - 1/50.000s
*-20°C / +45°C çalışma sıcaklığı *
12 V DC, 4W

Image Sensor:

|

2 MP CMOS Image Sensor

Signal System:

|

PAL/NTSC

Effective Pixels:

|

1930(H) × 1088(V)

Min. Illumination:

|

0.01 Lux @ (F1.2,AGC ON),0 Lux with IR

Shutter Time:

|

1/25(1/30) s to 1/50,000 s

Kamera Lens:

|

2.8mm, 3.6mm, 6mm optional

Lens Mount:

|

M12

Adjustment Range:

|

Pan: 0 - 360°, Tilt: 0 - 75°, Rotation: 0 - 360°

Day& Night:

|

IR cut filter with auto switch

Video Frame Rate:

|

1080p@25fps/1080p@30fps

HD Video Output:

|

1 Analog HD output

Synchronization:

|

Internal Synchronization

S/N Ratio:

|

More than 62 dB

Up the Coax:

|

Support

Anti-flicker:

|

On/ Off

Operating Conditions:

|

-40 °C - 60 °C (-40 °F - 140 °F)
Humidity 90% or less (non-condensing)

Power Supply:

|

12 VDC±15%

Power Consumption:

|

Max. 4W

IR Range:

|

Up to 20m

Communication :

|

Up the coax
Protocol: HIKVISION-C(Coaxitron)

Dimension:

|

Φ89.5 × 69.8 mm(Φ3.52” × 2.75”)

Weight:

|

250 g
