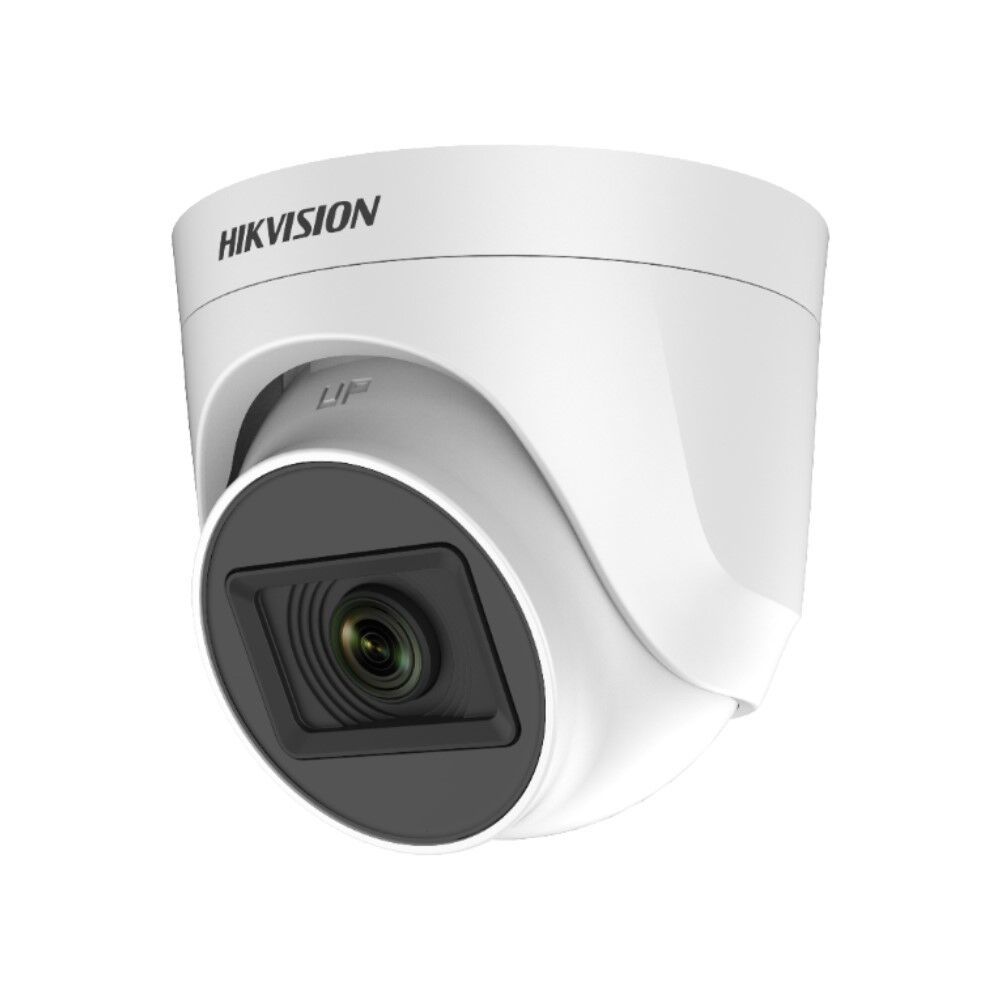

Hikvision DS-2CE76D0T-ITPF 2MP Analog IR Dome Kamera

Teknik Özellikler:

Camera

Image Sensor 2 MP CMOS

Signal System PAL/NTSC

Resolution 1920 (H) × 1080 (V)

Frame Rate

TVI: 1080P@30fps, 1080P@25fps

CVI: 1080P@30fps, 1080P@25fps

AHD: 1080P@30fps, 1080P@25fps

CVBS: PAL/NTSC

Min. illumination 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR

Shutter Time PAL: 1/25 s to 1/50, 000 s

NTSC: 1/30 s to 1/50, 000 s

Lens 2.8 mm, 3.6 mm, 6 mm fixed lens

Field of View

2.8 mm, horizontal FOV: 106.4°, vertical FOV: 57.9°, diagonal FOV: 124.6°

3.6 mm, horizontal FOV: 79.6°, vertical FOV: 43.5°, diagonal FOV: 93.7°

6 mm, horizontal FOV: 51.9°°, vertical FOV: 30°, diagonal FOV: 58.8°

Lens Mount M12

Day & Night ICR

WDR (Wide Dynamic Range) Digital WDR

Angle Adjustment Pan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360°

Menu

Image Mode STD/HIGH-SAT

AGC Yes

Day/Night Mode Auto/Color/BW (Black and White)

White Balance Auto/Manual

AE (Auto Exposure) Mode DWDR/BLC/HLC/Global

Noise Reduction 2D DNR

Language English

Function Brightness, Sharpness, Smart IR

Interface

Video Output Switchable TVI/AHD/CVI/CVBS

General

Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), humidity 90% or less (non-condensing)

Power Supply 12 VDC ± 25%

Power Consumption Max. 2.2 W

Material Plastic

IR Range Up to 20 m

Communication HIKVISION-C
